CHORD DAVE DAC 旗艦數位類比轉換器

Chord Electronics
建議售價
NT$428000
商品編號: SRC-CHORD-DAVE-DAC
加入最愛 此商品可以折抵紅利 0
商品介紹

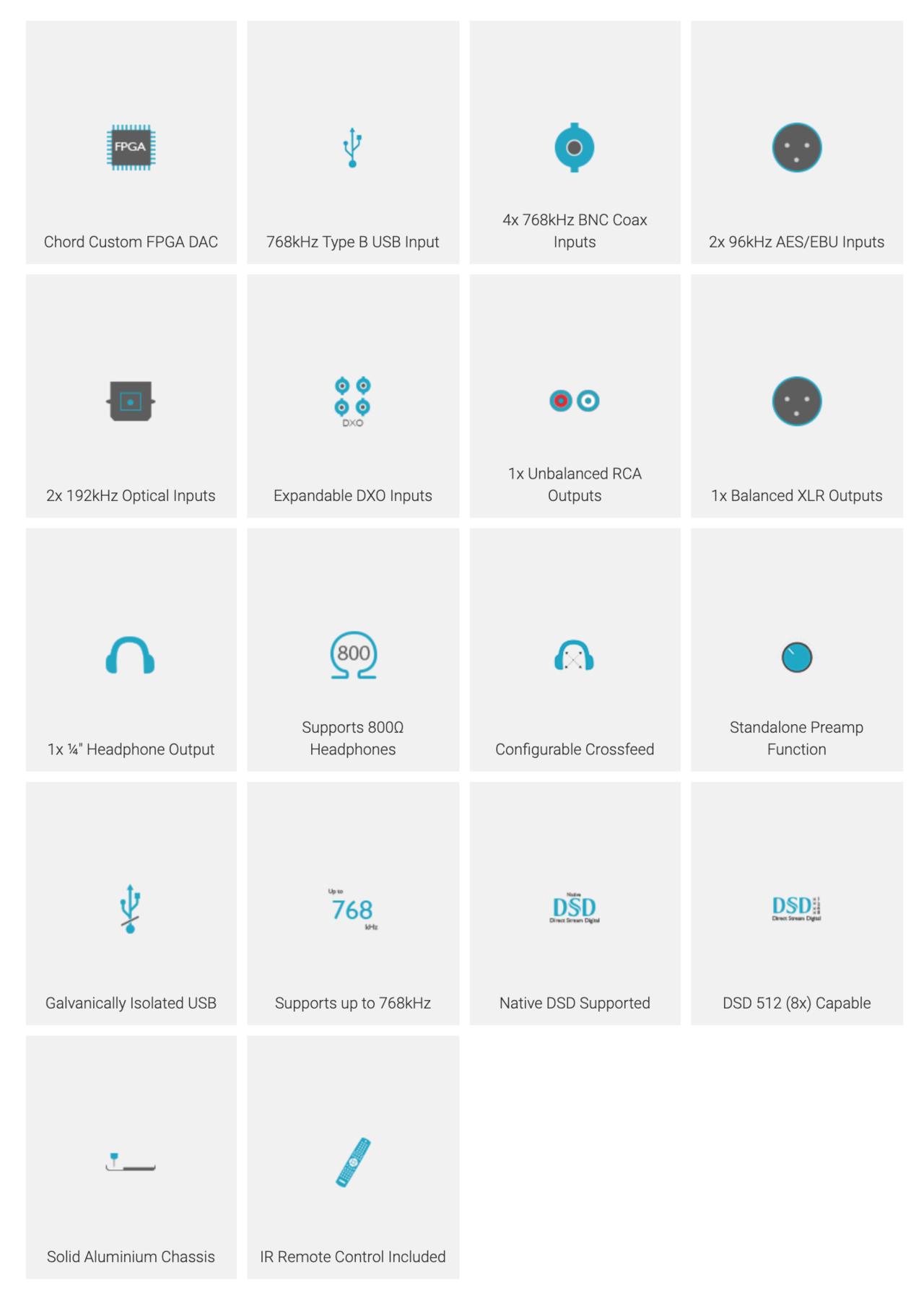

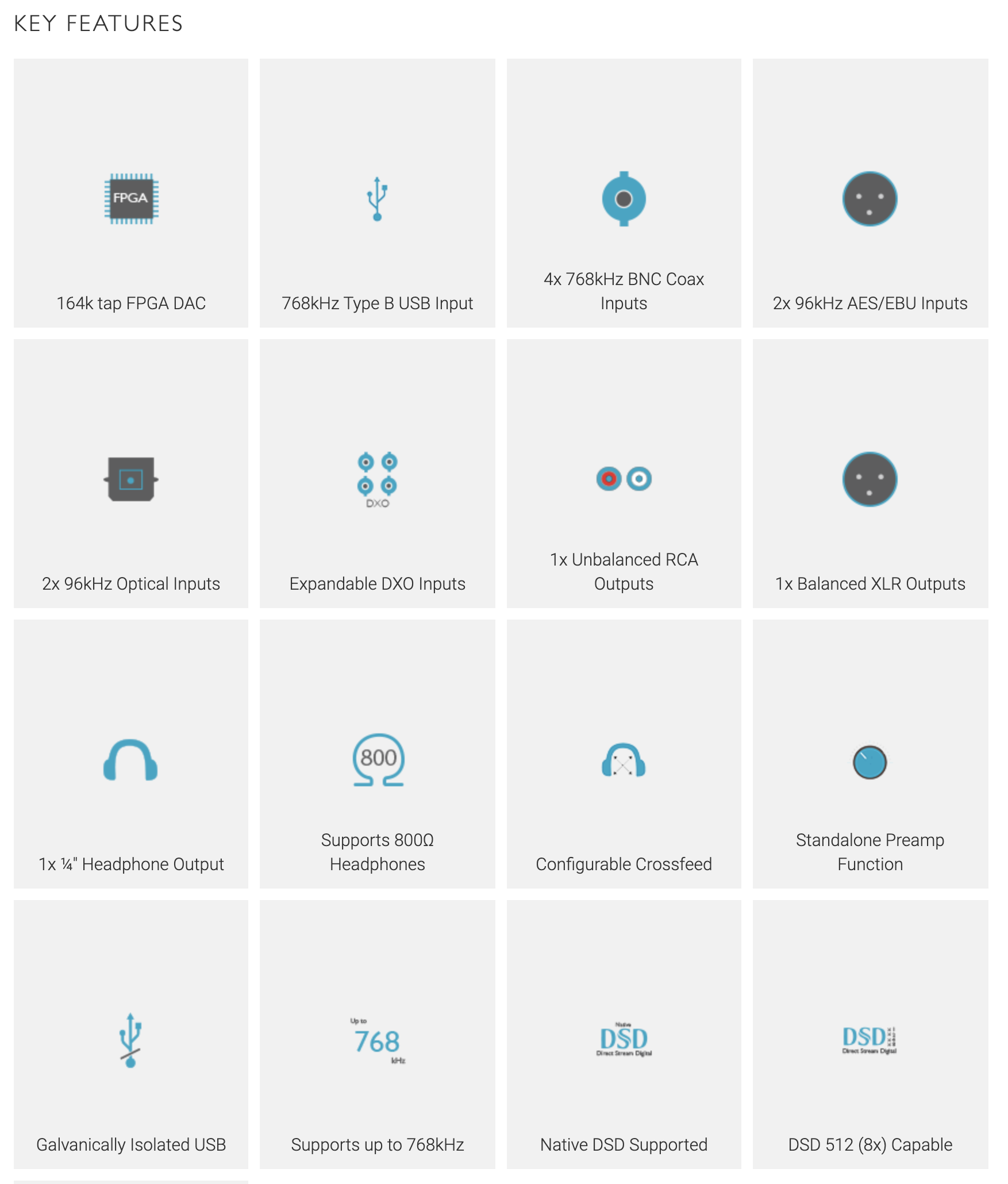

  • DIGITAL INPUTS:
  • 4x 75Ω S/PDIF BNC Coax – 44.1kHz to 384kHz
  • 1x AES XLR – 44.1kHz to 96kHz
  • 2x Fibre Optic TOSLINK – 44.1kHz to 192kHz
  • 1x USB Type B – 44.1kHz to 768kHz – PCM and DSD

  • ANALOGUE OUTPUTS:
  • 1x Stereo Pair of Unbalanced RCA
  • 1x Stereo Pair of Balanced XLR
  • 1x ¼” TRS Jack Headphone Output

  • FREQUENCY RESPONSE: 20Hz to 20kHz flat within +/-0.1dB (HF filter off)
  • THD + N: 127.5dB (AWT)
  • CHANNEL SEPARATION: >125dB @ 1KHz
  • DYNAMIC RANGE: 127.5dB (AWT)
  • SAMPLE FREQUENCIES: 44.1Khz – 768Khz DSD64,128,256,512 native DSD + DoP (input dependant)



商品規格
  • Frequency Response:20Hz to 20kHz +/- 0.1dB
  • THD +N:-127.5dB (AWT)
  • Channel Separation: >125dB @ 1kHz
  • Dynamic Range: 127.5dB (AWT)
  • Headphone Output:
  • 1% THD 6.8v RMS with 300Ω (154mW)
  • 1% THD 6.8v RMS with 33Ω (1.4w)
  • Output Impedance:0.055Ω (short circuit protected)
  • Operating voltage:90v AC – 250v AV auto switching 50Hz – 60Hz
  • Dimensions (including connectors):333.5mm (W) x 71mm (H) x 154mm (D)
  • Weight:7kg
