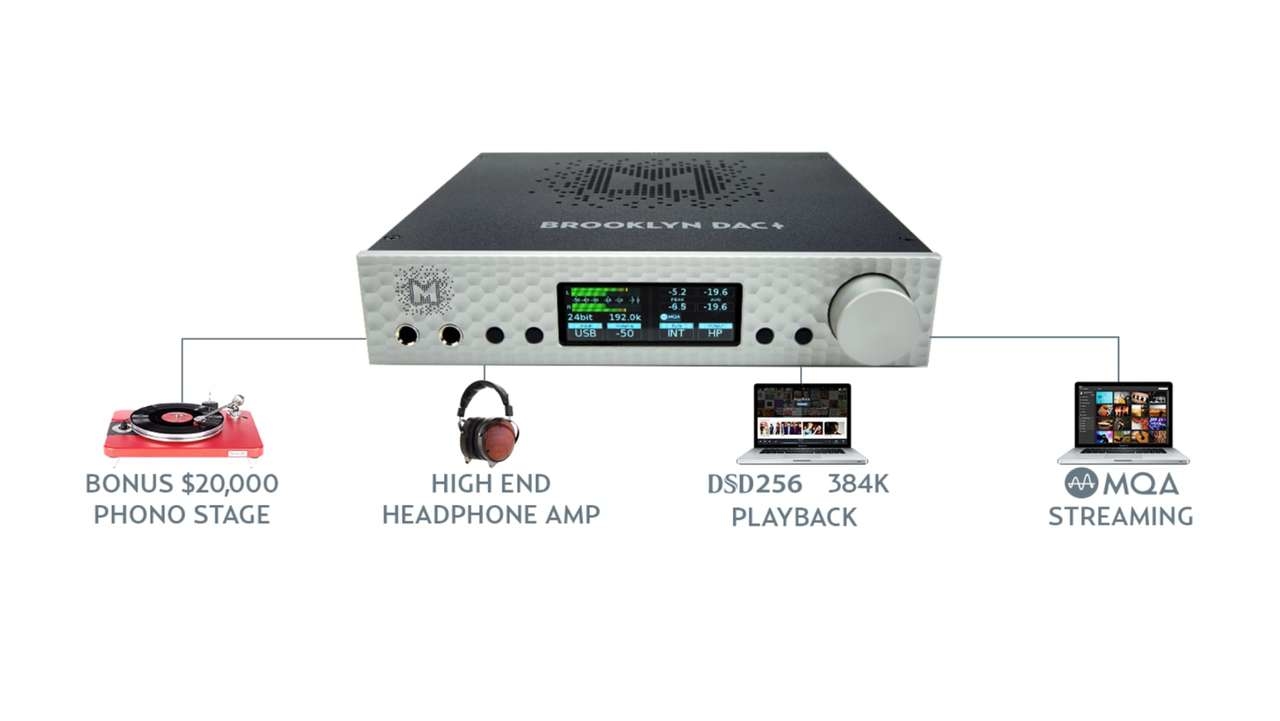

Brooklyn DAC+ is primarily reference USB2 DAC, but also line and phono analog preamplifier and a reference headphone amplifier. It integrates digital and vinyl hi-res playback for reference listening on headphones and speakers. All integrated functions are of the premium grade. Both phono preamplifier as well as a headphone amplifier are of the highest quality, they challenge dedicated units costing thousands of $$.
Brooklyn DAC+ was launched at RMAF 2017 in October 2017 and is now shipping. It replaces Brooklyn DAC which has now been discontinued.
Brooklyn DAC+ features the following improvements as compared to Brooklyn DAC:
- Sabre 9028 Pro chipset ( 9018 in older model)
- Higher grade, more transparent and less noisy analog attenuator circuit.
- Improved analog input performance
- Improved Phono Stage transparency
- Improved Headphone Amp sound (more detail, more definition)
- Dual mono analog path
In other words Brooklyn DAC+ has the same features as Brooklyn DAC but improved sound. It’s not a huge improvement, but noticeable, as Brooklyn DAC is still excellent sounding and best value in the price category when compared to competition.
Brooklyn DAC+ is now in stock and shipping. Brooklyn DAC remaining stock is being sold as well and available while supplies last.
Brookln DAC+有兩種用途：家用Hi-Fi與Mastering監聽
商品規格
CONVERSION: up to 384k, 32bit PCM, native DSD up to DSD256, DXD, 130dB Dynamic Range
MQA HI-RES DECODER: built in certified hardware MQA™ decoder
DIGITAL INPUTS: USB2 Class2 (OSX, Linux driverless, all formats), AES/EBU (PCM up to 192k, up to DSD64 DOP), 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), Toslink/ADAT 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), SDIF3 DSD up to DSD256
CLOCK: “Mytek Femtoclock Generator™” 0.82ps internal jitter, Wordclock Input and Output (allows stacking multiple units for multichannel operation, includes mch DSD)
ANALOG OUTPUTS: RCA, balanced XLR, simultaneous, 50 Ohm impedance
HEADPHONE OUTPUTS: Reference High Current, High transient Headphone Amp, 500mA, 6 Watts, dual headphone jacks, designed to drive hard to drive headphones.
BUILT-IN ATTENUATOR: Choice of 1dB step analog attenuator, separate for main out and head- phones, 1dB step digital 32 bit attenuator and purist relay bypass.
BUILT-IN ANALOG PREAMP: Line level input or Phono M/M, M/C input, relay controlled.
AUDIO INTERFACE FUNCTION: All digital inputs can be routed into computer via USB2. Allows connection of external digital sources such as CD Players and digitizing ADCs.
